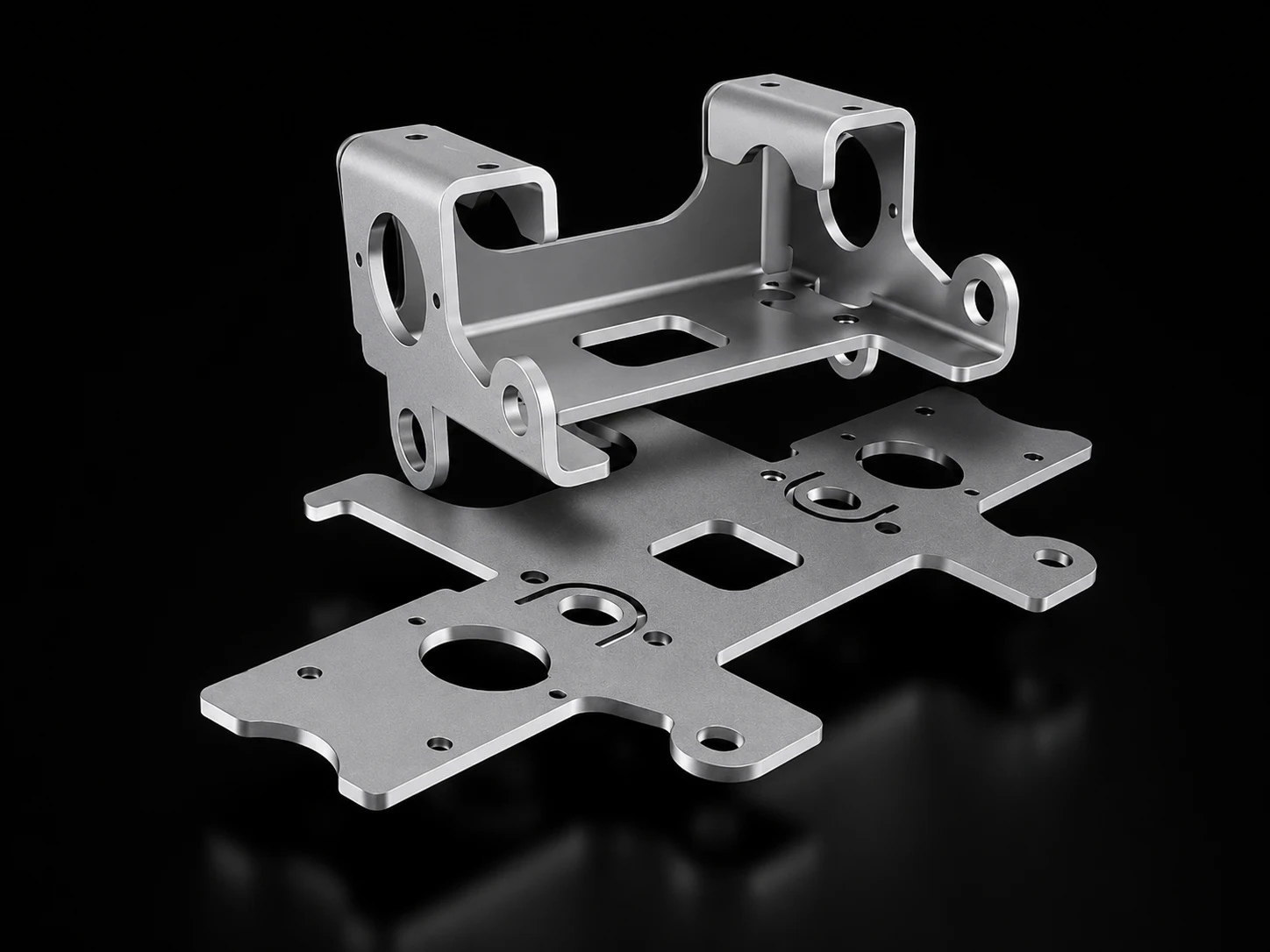

Experience fully integrated industrial forming. Our state-of-the-art CNC press brakes translate flat nested patterns into precision dimensional enclosures, brackets, and complex assemblies with repeatable accuracy.
Gone are the days of manual angle guesswork. Our machines automatically calculate and adjust for material springback during the stroke, providing exact dimensioning natively.
Achieve critical bend angle tolerances up to ±0.5° across complex multi-bend parts, dramatically accelerating your final assembly fitment and reducing prototyping revisions.
Seamlessly paired with our Fiber Lasers, flat DXF files are converted into formed reality on the same production floor. Extensive air-bend tooling allows endless geometries for your specific alloy.
Select a material and thickness to view its TRUMPF tooling assignment, K-factor, inside radius, minimum flange, and air-bend deduction at every angle. Values are reference figures for air bending in inches — verify on a test bend before committing production flats.
K-source family indicates the calibrated material whose K-factor was applied. Alloys without direct data (6061, 7075, 1100, Corten, AR500, spring steel) are proxied to the closest family — see flags on each card. Tooling: 5-die TRUMPF set, V-die ≈ 8× thickness.

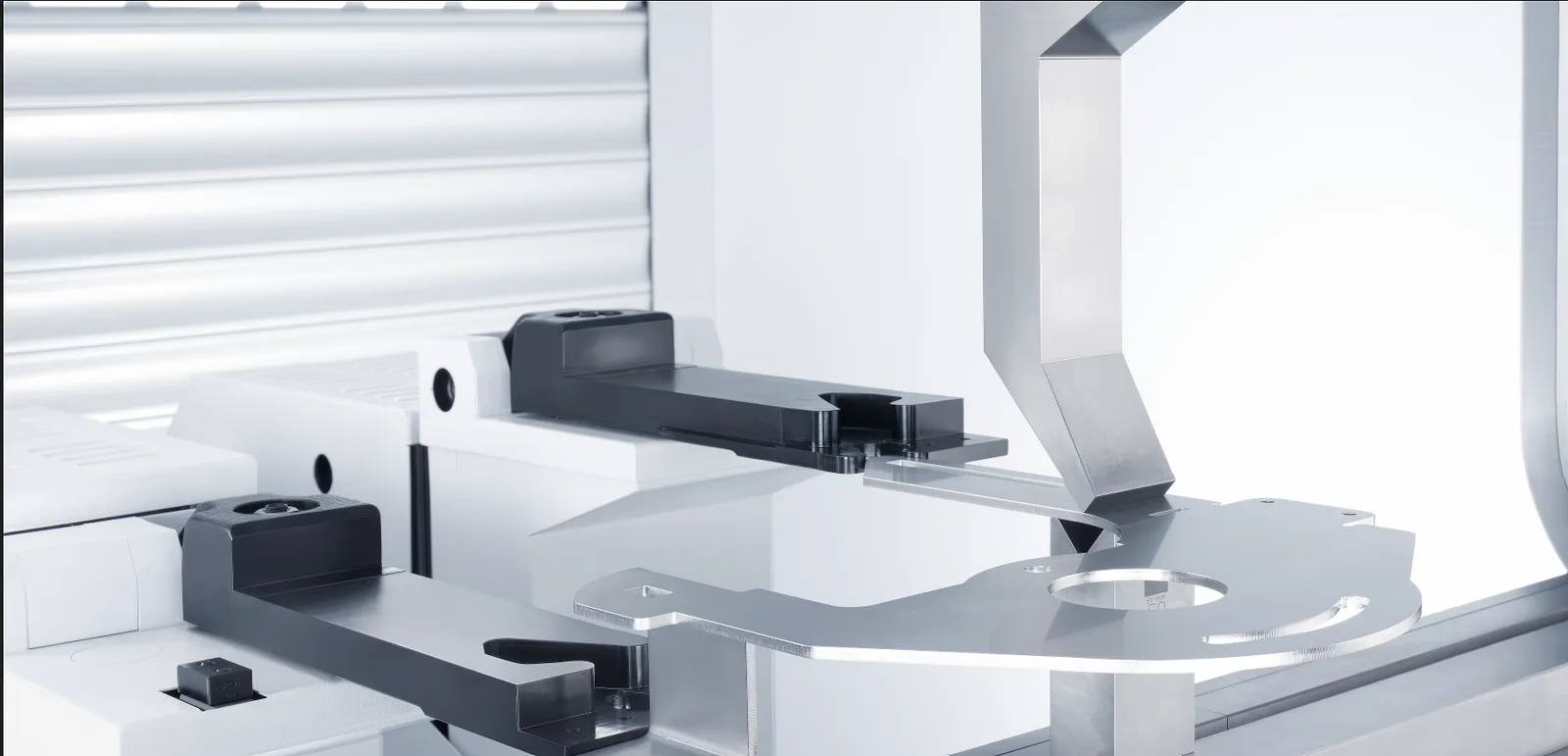

Complex geometries demand precise alignment. Our advanced 6-axis backgauge provides fully independent X1/X2, R1/R2, and Z1/Z2 positioning.
This allows for rapid and flawless staging of asymmetrical parts, tapered flanges, and multi-step progressive bending without the need for manual stops or custom fixtures.

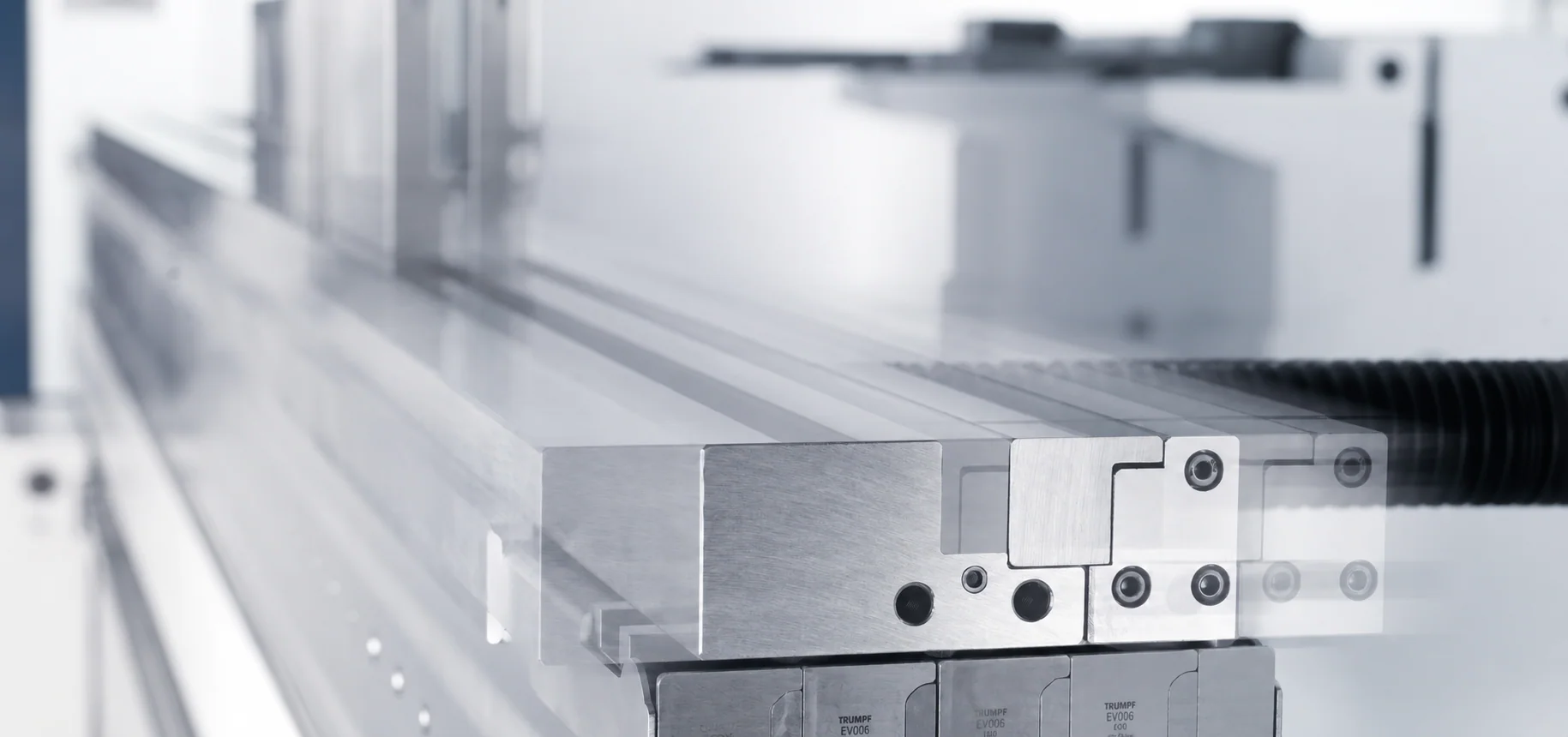

The I-Axis brings an entirely new level of versatility to our bending cells. With programmable lower die displacement, we can instantly switch forming operations.
Whether transitioning from a standard V-bend directly into a hemming operation or performing offset joggles, the I-Axis eliminates secondary handling and tooling changeovers, accelerating throughput for integrated parts.

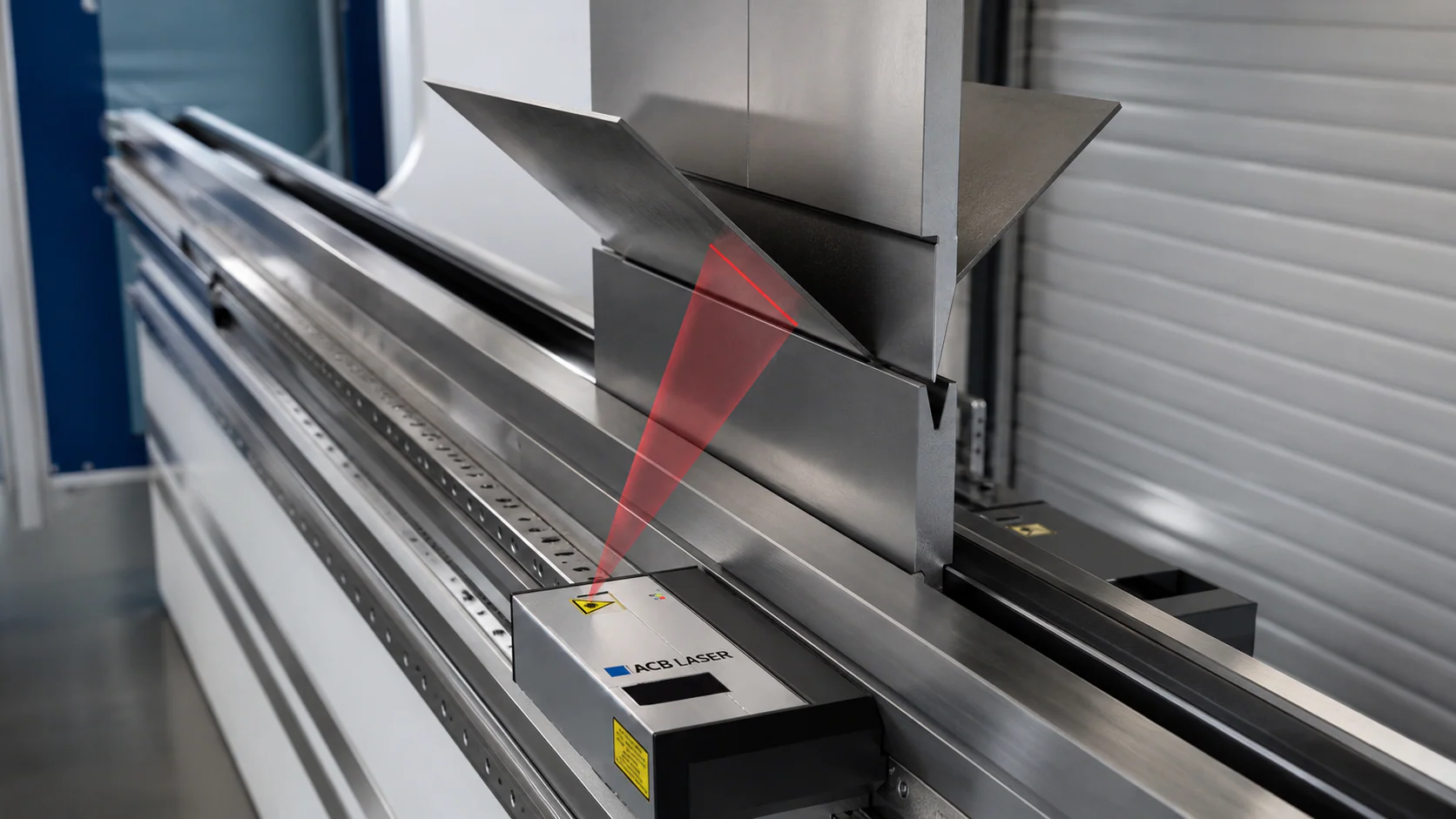

Automatically Controlled Bending (ACB) laser sensors ensure absolute precision from the very first stroke. The laser system continuously measures the part angle during the bending process in real-time.
It automatically detects varying material thicknesses or unexpected springback properties in the sheet and dynamically adjusts the pressing stroke. The result is consistently matched flanges, minimizing test pieces, reducing waste, and guaranteeing high angular precision regardless of grain direction.
Read the full ACB Laser guide →Every alloy, finish, and gauge we form on the brake. Each thickness shows the V-die it runs in and the shortest flange that die will hold — click any chip for the full spec sheet, or use the bend data lookup above for K-factor and deduction at every angle.
Upload your files today. Instant quoting available for up to 500 parts with rapid lead times.
